Check out the new Cameras from JAI ! & new Factory automation lenses from MORITEX!

NEW JAI products

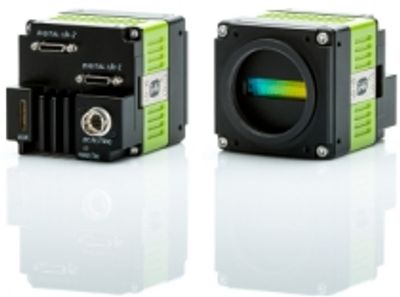

NEW 4096 linescan and 3x4096 RGB Tirlinear Linescan cameras

4096 RGB CMOS Linescan 200Khz Line rate, PMCL interface, 7.5 x 7.5um pixel, 8/10 bit, 30.72mm sensor scanning width


3 x 4096 RGB CMOS Trilinear Linescan cameras 66Khz Line rate, PMCL interface, 7.5 x 7.5um pixel

http://www.jai.com/en/products/sweep-cmos-monochrome-inspection-cameras-line-scan

NEW Multispectral CMOS cameras



      FS-1600D-10GE – a 1.6-megapixel CMOS-based multi-spectral camera capable of delivering       a combination of color and near infrared images at up to 226 frames per second



FS-3200D-10GE – a 3.2-megapixel CMOS-based multi-spectral camera capable of delivering a combination of color and near-infrared images at up to 123 frames per second.

























New 8k monochrome line scan cameras
New 8k monochrome line scan cameras

New Moritex Lenses


Compact Factory Automation lenses

ML-U-SR Series for Machine Vision

  • Compact Design
  • "Super" High Resolution 150lp/mm, Large Aperture Design
  • Large Format, 1.1", 12MP, 3.5µm Pixel Sensor Compatible
  • Color Corrected for Visible to NIR Wavelengths  (400~1,000 nm)
  • Designed for Sony Pregius and Other High Performance Sensor

ML-M-UR Series for Machine Vision

  • Compact Design, Vibration Resistant Design
  • Large Aperture, Best-in-Class Optical Design
  • 2/3" Compatible, Visible to NIR Compatible AR Coatings (400~1,000 nm)
  • ML-M-UR : "Ultra" High Resolution 200lp/mm Design for 6MP, 2.2μm Pixel Sensors
  • Designed for Sony Pregius, STARVIS, and Other High Performance Sensors

ML-M-HR Series for Machine Vision

  • Compact Design, Vibration Resistant Design
  • Large Aperture, Best-in-Class Optical Design
  • 2/3" Compatible, Visible to NIR Compatible AR Coatings (400~1,000 nm)
  • ML-M-HR : "High" Resolution 130lp/mm Design for 4MP, 5.0μm Pixel Sensors
  • Designed for Sony Pregius, STARVIS, and Other High Performance Sensors

ML-T Series for Transport System

  • Compact Design, Vibration Resistant Design
  • Wide Focus Range, Closest WD 2,000mm
  • Color-Corrected for Visible to NIR Wavelengths (400~1,000nm) for Outdoor, Day/Night Use

Click below for full information
